Kingspan Pre-Insulated Ducts

PalDuct Phenolic, PalDuct PIR and KDuct Pre-Clad systems — download data sheets and add them to your quote.

Core type

Application

Thickness

λ ≤ 0.040 W/m·K

3 / 3

Kingspan Insulation

Compare

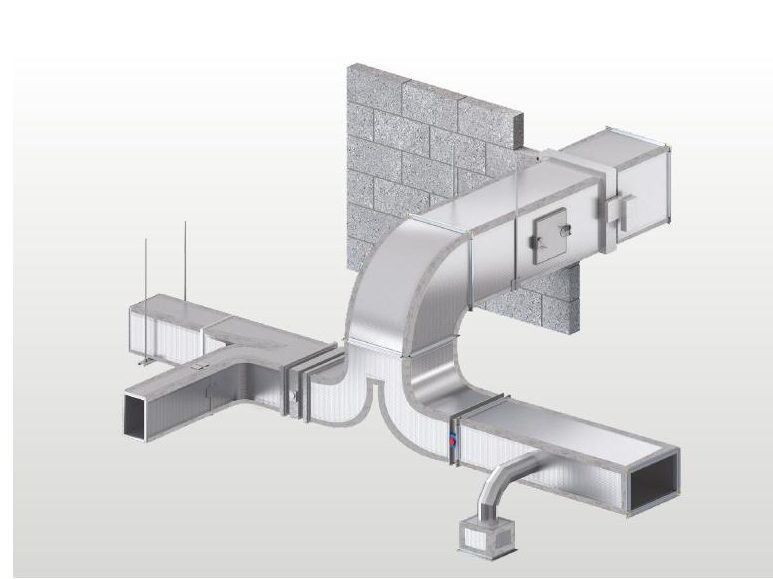

Kingspan PalDuct Phenolic System

Fibre-free rigid thermoset phenolic insulation core, faced on both sides with aluminium foil reinforced with glass scrim. Zero ODP, GWP ≤5.

Core type: Phenolic
Thickness: 20 mm
Min. density: 55 kg/m³
Thermal conductivity: 0.033 W/m·K @ 23°C
Product code: 2014
Panel size: 4000 × 1200 mm
Facing: Alu foil + glass scrim
Fire (ASTM E84 / UL 723): FSI/SDI 25/50

Supply, return, fresh and exhaust air ductwork
Commercial, residential & public buildings

Brochure (PDF) Data sheet (PDF)

Kingspan Insulation

Compare

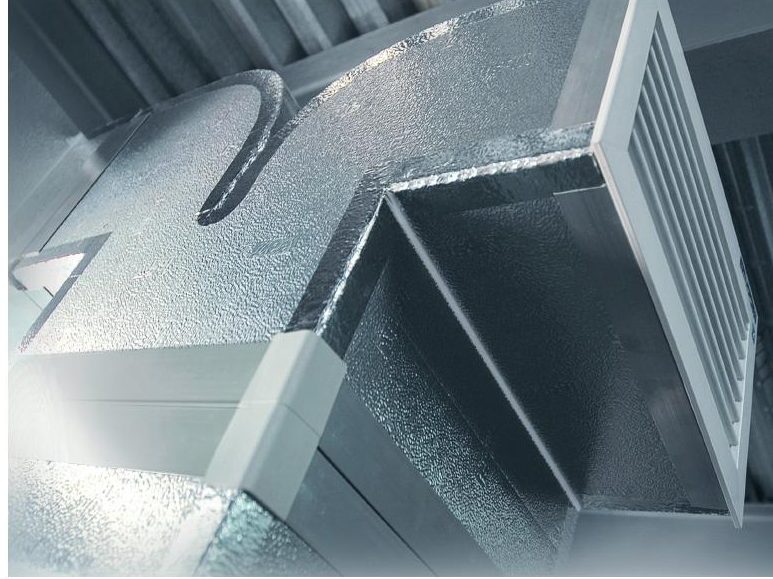

Kingspan PalDuct PIR System

Rigid thermoset polyisocyanurate (PIR) insulation core faced on both sides with embossed aluminium foil. Pre-insulated rectangular HVAC duct sections up to 4 m long.

Core type: PIR
Thickness: 20 mm
Min. density: 42 kg/m³
Thermal conductivity: 0.024 W/m·K @ 10°C
Product code: 11010
Panel size: 4000 × 1200 mm
Facing: Embossed / Embossed alu foil

New build & refurbishment projects
Residential, commercial, light industrial, leisure

Brochure (PDF) Data sheet (PDF)

Kingspan Insulation

Compare

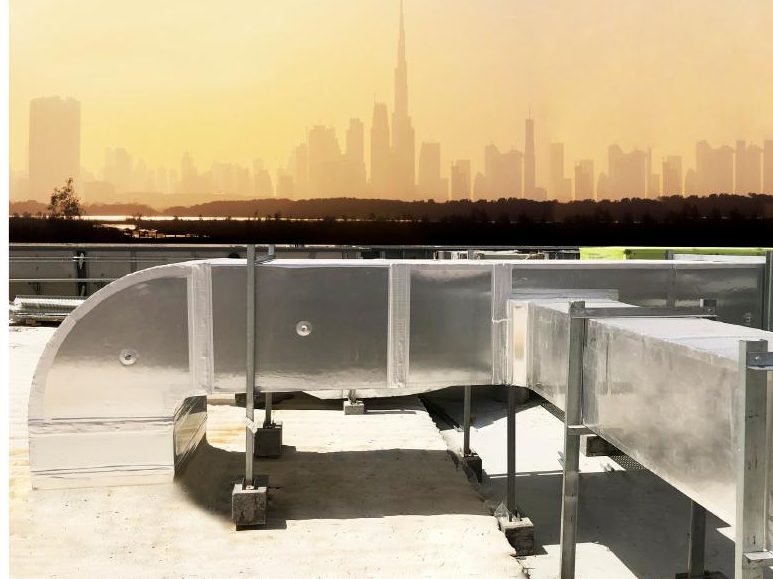

Kingspan KDuct Pre-Clad Phenolic

Fibre-free phenolic duct board with reinforced aluminium foil inside and composite aluminium laminate outside — built for outdoor and non-conditioned areas.

Core type: Phenolic
Thickness: 30 mm
Min. density: 75 kg/m³
Thermal conductivity: 0.037 W/m·K @ 35°C
Facing: Alu foil inside / alu laminate outside
Min. compressive stress: 200 kPa

External / outdoor ductwork
Plantrooms, risers & congested spaces

Brochure (PDF)
